Chart referenceDescription
coreweave/tailscale-operatorCoreWeave’s Helm chart for deploying Tailscale Operator on CKS clusters
This page describes how to deploy and configure the CoreWeave tailscale-operator Helm chart on a CKS cluster, including the Tailnet policy changes recommended for CKS and the procedures for exposing in-cluster services to your Tailnet. This page is for cluster administrators who want to provide secure, private access to in-cluster resources and the Kubernetes API server without exposing them publicly.

​
About Tailscale

Tailscale is a mesh network VPN service that powers encrypted peer-to-peer private network communication. With native support for Kubernetes and a Kubernetes Operator, Tailscale is a popular choice for securely accessing in-cluster resources and the Kubernetes API server without exposing them publicly. To work well in the CKS environment, CoreWeave packages a customized version of the tailscale-operator Helm chart and a CoreWeave-specific container image.

​
Usage

Before you install the Helm chart, update your Tailnet so it is compatible with CKS networking. The following sections outline the policy changes required to avoid IP overlap with CKS control-plane services and to take advantage of CoreWeave-hosted relays.

​
Tailnet configuration

Edit your Tailnet policy JSON for use with CKS. The following sections outline the recommended changes to your Tailnet configuration.

​
Tailnet ipPool

Tailscale’s default configuration assigns an IP address from the 100.64.0.0/10 range to each device joined to a Tailnet. Because CKS operates some control-plane services in the 100.124.0.0/18 address range, a Tailnet used with CKS should allocate addresses from a smaller, non-overlapping pool. Tailscale supports configurable IP Pools for this purpose. The largest contiguous non-overlapping address pool for use with CKS is 100.64.0.0/13.
Example policy JSON using the 100.64.0.0/13 CIDR range
{
 "nodeAttrs": [
  {
   "ipPool": ["100.64.0.0/13"],
  },
 ],
}
CoreWeave’s tailscale-operator chart and container image provide the customizations needed to support a non-overlapping ipPool out of the box.

​
Tailnet derpMap

Tailscale runs relay servers worldwide to help establish direct connections to endpoints on your Tailnet. When direct connections are impossible, the relays forward traffic to your endpoints. To complement the Tailscale-hosted relays, CoreWeave hosts its own relays in select regions to provide a last-mile hop to your CKS workloads. To consume CoreWeave hosted relays, you must add them to Tailnet’s configuration.
By default, the Tailscale client chooses a relay closest to connection origin, which isn’t always a CoreWeave hosted relay. To ensure exclusive consumption of CoreWeave relays, enable OmitDefaultRegions in your Tailnet configuration. This configuration may not be optimal when connecting to endpoints outside a CoreWeave Region.
This example outlines all the recommended objects for your Tailnet’s Policy JSON.
{
 // Included in the default Tailscale Policy file
 "acls": [
  {"action": "accept", "src": ["*"], "dst": ["*:*"]},
 ],
 "ssh": [
  {
   "action": "check",
   "src":    ["autogroup:member"],
   "dst":    ["autogroup:self"],
   "users":  ["autogroup:nonroot", "root"],
  },
 ],
 // nodeAttrs for tailnet ipPool
 "nodeAttrs": [
  {
   "ipPool": ["100.64.0.0/13"],
  },
 ],
 // derpMap for Tailscale relays on CoreWeave
 "derpMap": {
   // Disable default Tailscale relays
  "OmitDefaultRegions": true,
  "Regions": {
   // To find an up-to-date, complete list of CoreWeave relays
   // https://raw.githubusercontent.com/coreweave/tailscale-derp/main/derpmap/derpmap.json
   "904": {
    "RegionID":   904,
    "RegionCode": "us-east-04",
    "RegionName": "US-EAST-04",
    "Nodes": [
     {
      "Name":     "904a",
      "RegionID": 904,
      "HostName": "derp.us-east-04.coreweave.com",
     },
    ],
   },
  },
 },
 // For the tailscale-operator to use its OAuth token for adding tailscale Nodes to the tailnet
 "tagOwners": {
  "tag:k8s-operator": [],
  "tag:k8s": ["tag:k8s-operator"],
 },
}

​
Deploy the tailscale-operator chart

The CoreWeave Charts tailscale-operator chart is based on the upstream Tailscale chart, with optimizations that work best with CKS. The CoreWeave tailscale-operator Helm chart includes the following:
  • A default ProxyClass applied to all exposed services to configure proxy-specific settings.
  • Support for CKS-specific TS_CGNAT_OVERRIDE_RANGE, to allow cluster-local communication in the 100.124.0.0/18 address range.
  • Default resource limits.
  • A post-install hook to declaratively expose existing in-cluster services to your Tailnet.
To install the Helm chart, first provide an OAuth client and modify your Tailnet policy file so the tailscale-operator can communicate with the Tailscale Control Plane. You can find detailed information about OAuth clients in Tailscale’s documentation.
Tailnet policy JSON to allow the operator
"tagOwners": {
  "tag:k8s-operator": [],
  "tag:k8s": ["tag:k8s-operator"],
}
After you update your Tailnet policy, install the tailscale-operator chart using one of the following methods. Both methods produce the same result. Choose the one that best fits how you manage secrets in your cluster.

​
Install with the Secret pre-created

In this method, the tailscale namespace is pre-created, and the Kubernetes Secret operator-oauth is populated with the credentials that the tailscale-operator requires. Use this approach when you prefer to manage the OAuth Secret separately from the Helm release, for example when another workflow or sealed-secrets tool creates the Secret. First, create the tailscale namespace.
kubectl create namespace tailscale
Next, create a Secret from the OAuth secret generated in the admin console.
kubectl create secret generic operator-oauth \
    --namespace tailscale \
    --from-literal=client_id=[CLIENT-ID] \
    --from-literal=client_secret=[CLIENT-SECRET]
After adding the Secret to the namespace, install the Helm chart.
helm upgrade --install tailscale-operator \
    --namespace tailscale coreweave/tailscale-operator

​
Install by setting the OAuth secret in Helm values

This method installs the Secrets, and creates the tailscale namespace, during the Helm chart installation. Use this approach when you want a single Helm command to handle namespace creation and OAuth credentials in one step.
helm upgrade --install \
    --create-namespace tailscale-operator \
    --namespace tailscale \
    --set tailscale-operator.oauth.clientId=[CLIENT-ID] \
    --set tailscale-operator.oauth.clientSecret=[CLIENT-SECRET] \
    coreweave/tailscale-operator

​
Verify the installation

After the installation is complete, verify that the tailscale-operator is running in the tailscale namespace.
kubectl get pods -n tailscale
Output:
NAME                        READY   STATUS    RESTARTS        AGE
operator-54f98f5c6f-jwjmr   1/1     Running   0               9m18s

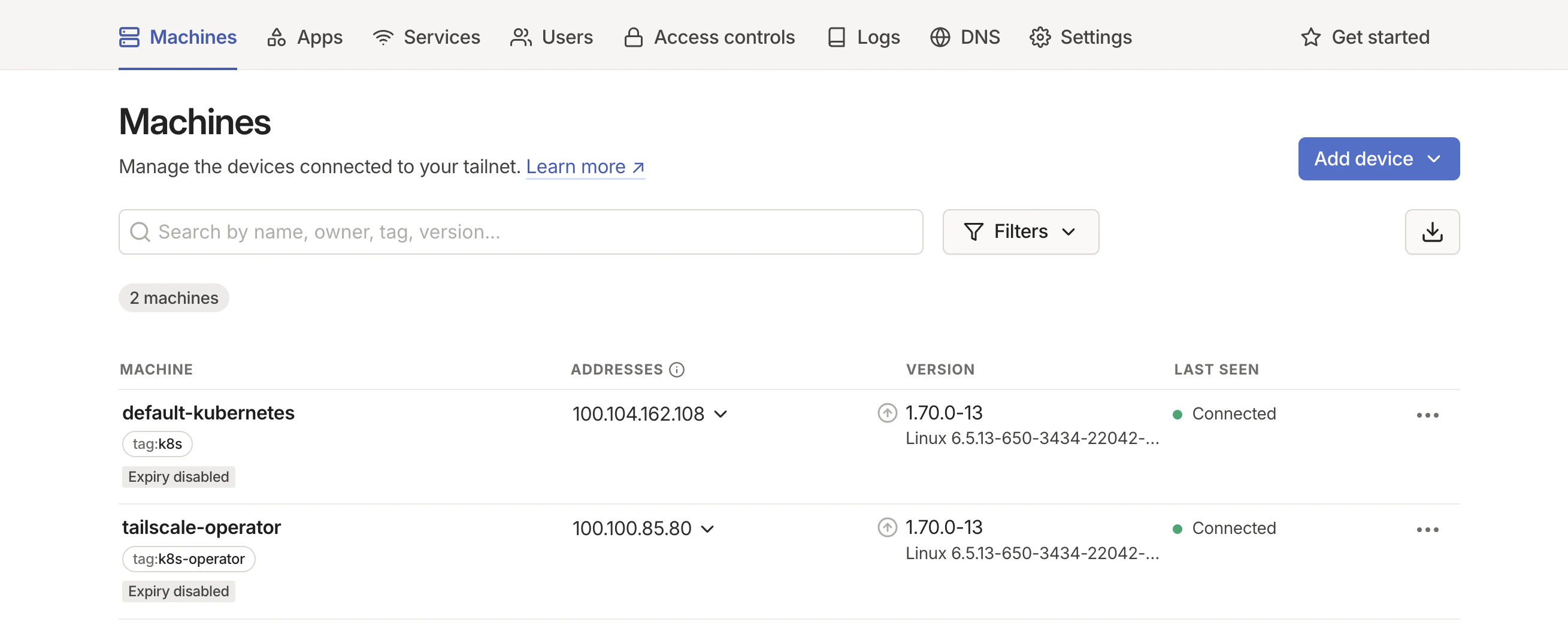

Check the Tailscale admin console to see the connected clients. Tailscale admin console showing default clients connected At this point, the operator is running in the cluster and registered with your Tailnet. You can now expose in-cluster services to your Tailnet so they are reachable from other Tailscale devices.

​
Expose services

To expose Kubernetes services to Tailnet, you can annotate a Kubernetes service, or configure the services in Helm values. Choose annotations for one-off or ad-hoc exposures, and Helm values when you want exposed services tracked declaratively with the chart release.

​
Annotate a Kubernetes service

To expose a service to Tailnet, annotate the service with the tailscale.com/expose: true annotation.
kubectl annotate service kubernetes tailscale.com/expose="true" -n default
After the service is exposed, a new Pod is created in the tailscale namespace.
kubectl get pods -n tailscale
Output, with the newly created Pod highlighted:
NAME                        READY   STATUS    RESTARTS      AGE
operator-54f98f5c6f-jwjmr   1/1     Running   6 (55m ago)   59m
ts-kubernetes-6f9dq-0       1/1     Running   0             8m7s
You can access the service through the Tailscale IP address or MagicDNS hostname. By default, MagicDNS names are formatted as [NAMESPACE]-[SERVICE-NAME].[MAGICDNS-HOSTNAME].

​
Configure services in Helm

To expose a service to Tailnet, modify your Helm values to include the service.
helm upgrade -i tailscale-operator -n tailscale coreweave/tailscale-operator \
    --set exposedServices.[0].name=kubernetes \
    --set exposedServices.[0].namespace=default
This uses a Helm post-install or upgrade hook during upgrade or installation. For additional information on Tailscale usage, see:
