JAX is Google’s high-performance numerical computing library that brings composable function transformations, JIT compilation, automatic differentiation, and vectorization to NumPy-style code. It runs identically on CPU and GPU without any changes to your model. This tutorial deploys a JAX example notebook to CKS with a single command. The notebook trains a small identity network using Flax and Optax, and streams a live loss chart to the browser as training progresses, an example of the interactive capabilities marimo unlocks for GPU workloads. In this tutorial, you:
  1. Download the JAX example notebook from the marimo-operator repository.
  2. Deploy it to CKS with a single CLI command.
  3. Run training interactively and watch results update live in the browser.

What you'll need

Before you start, you must have:
  • A CKS cluster with at least one GPU Node.
  • The marimo operator installed on your cluster.
  • kubectl installed and configured to access your cluster.
  • kubectl-marimo installed (uv tool install kubectl-marimo).

What you'll use

You’ll use these tools and libraries:
  • JAX: High-performance numerical computing with GPU acceleration.
  • Flax: Neural network library built on JAX.
  • Optax: Gradient processing and optimization for JAX.
  • marimo-operator: Manages notebook deployments on Kubernetes.
  • kubectl-marimo: CLI plugin for running notebooks on Kubernetes.
About the container imageThis example uses the standard ghcr.io/marimo-team/marimo:latest image, no custom Dockerfile needed. The jax[cuda12] package bundles its own CUDA runtime, so GPU support is installed automatically as a dependency when the notebook first starts.

​
Get the example notebook

Download the JAX example notebook from the marimo-operator repository:
curl -O https://raw.githubusercontent.com/marimo-team/marimo-operator/main/examples/jax/jax_example.py
The notebook embeds its Kubernetes configuration and pinned dependencies in a PEP 723 header. This means the notebook is fully self-contained: the kubectl-marimo plugin reads the header to configure GPU resources and storage, while marimo uses the dependency list to provision an isolated environment on first run.
jax_example.py (header)
# /// script
# requires-python = ">=3.11"
# dependencies = [
#     "flax>=0.10.0",
#     "jax[cuda12]>=0.4.0",
#     "marimo>=0.21.1",
#     "matplotlib==3.10.8",
#     "mofresh",
#     "optax>=0.2.0",
#     "polars>=1.0",
# ]
#
# [tool.marimo.k8s]
# storage = "5Gi"
#
# [tool.marimo.k8s.resources]
# limits."nvidia.com/gpu" = 1
#
# [tool.marimo.k8s.nodeSelector]
# "gpu.nvidia.com/class" = "L40"
# ///
Because dependencies are pinned in the file itself, marimo recreates the environment exactly on every pod start, including after a spot instance preemption. The same notebook runs equally well as a standalone script (marimo edit jax_example.py locally), as a deployed pod on CKS, or checked into a larger project alongside other notebooks and source files.
The preceding nodeSelector targets L40 Nodes as a concrete example. Adjust or remove it to match the GPU class available in your cluster. Run kubectl get nodes --show-labels to see what’s available.

​
Deploy the notebook

Deploy to your cluster with a single command:
kubectl marimo edit jax_example.py --namespace [NAMESPACE]
Replace [NAMESPACE] with the namespace you want to deploy into. The plugin parses the header, generates and applies the MarimoNotebook manifest, waits for the pod to be ready, and opens a port-forward:
Waiting for jax-example to be ready...
Opening http://localhost:2718?access_token=<TOKEN>
Press Ctrl+C to stop port-forward and sync changes
First-run install timejax[cuda12] bundles CUDA libraries (about 700 MB). The initial pod startup takes 2 to 3 minutes while marimo installs packages. The 5 Gi PVC caches the environment, so subsequent restarts skip the download.

​
Run the notebook

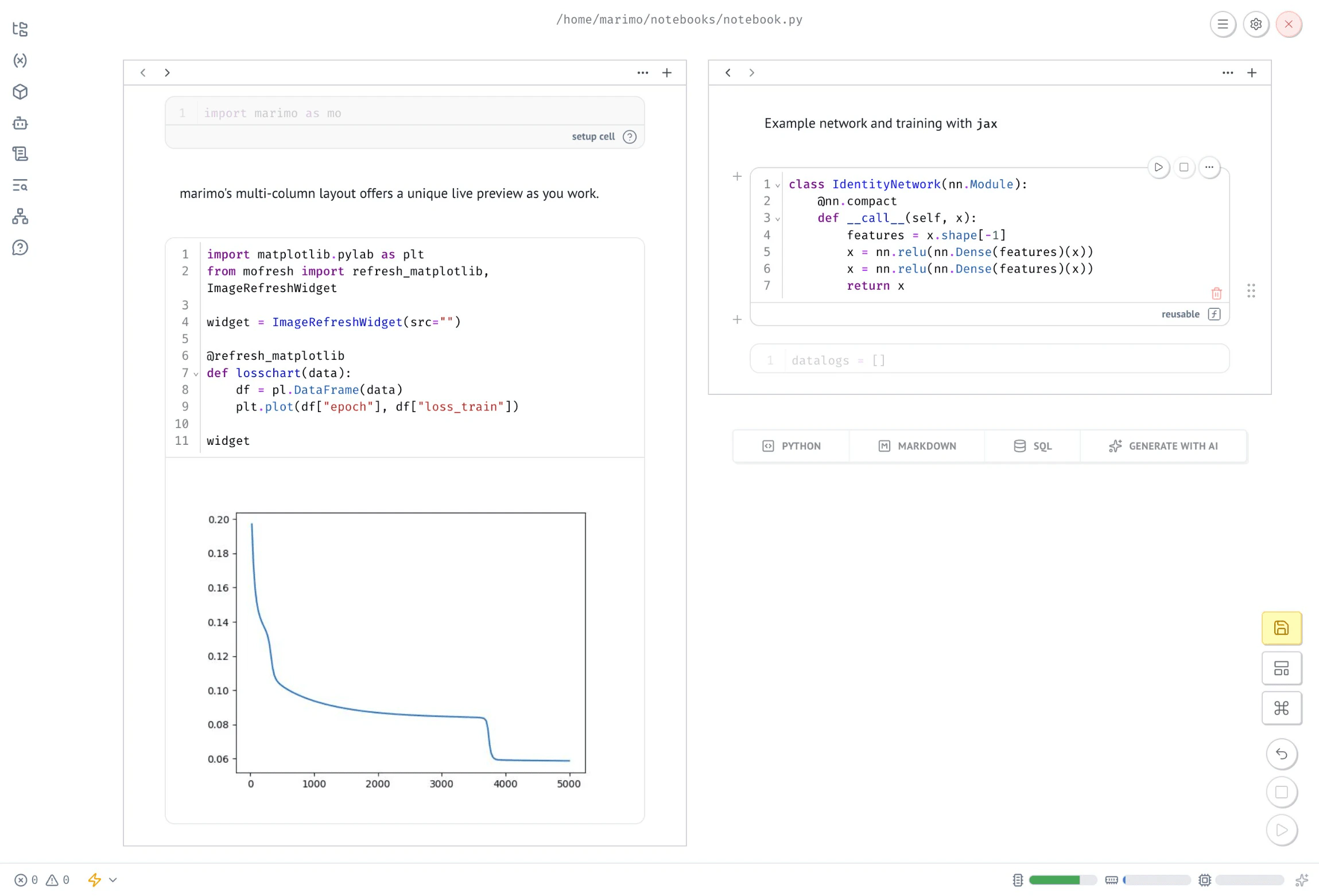

The notebook uses auto_instantiate = false, so cells don’t run automatically on load. Click Run all to start training. The notebook opens in a two-column layout: a live loss chart on the left streams updates from the GPU as training progresses, with the training code visible on the right. Training in progress, with the live loss chart updating on the left column. Because the notebook runs interactively on the cluster, you can edit cells, adjust hyperparameters, and re-run without leaving the browser. Changes sync back to your local file when you close the session. At this point, you have a working JAX notebook training on a GPU Node in your cluster, with results streaming live to your browser.

​
Clean up

When you’re done with the notebook, clean up the cluster resources to avoid consuming GPU capacity. Press Ctrl-C to stop the port-forward. The plugin syncs any edits back to your local jax_example.py before exiting. To delete the cluster resources:
kubectl marimo delete jax_example.py --namespace [NAMESPACE]
The PVC is retained by default to preserve the cached package environment. To remove it as well:
kubectl marimo delete jax_example.py --namespace [NAMESPACE] --delete-pvc

​
Additional resources
