Self-hosted Prometheus - CoreWeave Docs

CoreWeave’s observability platform provides infrastructure metrics and logs for your clusters, but it does not collect metrics from your own applications. To collect custom application metrics and visualize them alongside CoreWeave’s metrics, you can deploy a self-hosted Prometheus instance in your CKS cluster. This guide covers:

Deploying Prometheus in a CKS cluster using Helm
Adding Prometheus as a data source in your self-hosted Grafana instance
Configuring Prometheus to scrape custom metrics from your application pods

Customers who self-host Prometheus are responsible for all setup, maintenance, and resource costs associated with hosting. See CoreWeave Grafana for the fully-managed observability option.

Prerequisites

A CKS cluster with at least one CPU Node available for Prometheus
kubectl installed and configured for your cluster
helm installed
A self-hosted Grafana instance. If you haven’t set one up yet, see Self-hosted Grafana first.

Deploy Prometheus

Prometheus is available via the prometheus-community Helm chart repository. Install it using the kube-prometheus-stack chart, which includes Prometheus and the Prometheus Operator. This tutorial uses ephemeral storage. Prometheus stores its metrics in an emptyDir volume, so collected history is lost when the Prometheus Pod is deleted or replaced. For a durable deployment, configure persistent storage with prometheus.prometheusSpec.storageSpec before installing the chart.

Add the prometheus-community Helm chart repository:

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update

Create a values file named prometheus-values.yaml with the following content:
prometheus-values.yaml
grafana: enabled: false alertmanager: enabled: false nodeExporter: enabled: false kubeStateMetrics: enabled: false defaultRules: create: false
These settings disable components that this tutorial does not use:
- grafana.enabled: false skips the bundled Grafana instance because you use the CoreWeave self-hosted Grafana chart instead.
- alertmanager.enabled: false skips Alertmanager.
- nodeExporter.enabled: false skips the bundled node exporter. CoreWeave already runs a node exporter on each CKS Node. The bundled exporter cannot bind host port 9100 because that port is already in use.
- kubeStateMetrics.enabled: false skips a second copy of kube-state-metrics, which watches Kubernetes API objects. CoreWeave runs kube-state-metrics on the managed control plane, rather than on each Node.
- defaultRules.create: false skips the chart’s default alerting and recording rules. Those rules include checks for components that this configuration does not deploy or scrape, which can produce firing alerts even when your application metrics are available.
With the bundled collectors disabled, this Prometheus instance does not collect their metrics, such as kube_pod_info and node_cpu_seconds_total. Imported dashboards that depend on those metrics show no data. Use CoreWeave Grafana for the infrastructure metrics collected by CoreWeave. Kubelet and cAdvisor scraping remain enabled in this configuration.

Install Prometheus in a dedicated monitoring namespace:

helm install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --create-namespace \
  --values prometheus-values.yaml

You should see output similar to the following:

NAME: prometheus
LAST DEPLOYED: ...
NAMESPACE: monitoring
STATUS: deployed
REVISION: 1

Verify the Prometheus deployment

Run the following command to confirm Prometheus is running:

kubectl get pods -n monitoring

Wait until both Pods show Running and all containers are ready (1/1 for the Operator and 2/2 for Prometheus). If they are still starting, rerun the command after a short wait. You should see output similar to the following:

NAME                                                     READY   STATUS    RESTARTS   AGE
prometheus-kube-prometheus-operator-6d4f9c8b9d-xxxx      1/1     Running   0          2m
prometheus-prometheus-kube-prometheus-prometheus-0       2/2     Running   0          90s

To confirm the Prometheus service is available, run:

kubectl get svc -n monitoring

Copy the name of the Prometheus Service that exposes port 9090 from the command output. Use this exact name for [PROMETHEUS-SERVICE] in the URL and port-forward command below. The chart can truncate generated names, so do not infer the Service name from the Helm release name.

Add Prometheus as a data source in Grafana

To query your custom application metrics from Grafana, add Prometheus as a data source.

Open your self-hosted Grafana instance and log in. If you need to access it, first find the namespace of its Service:
kubectl get svc --all-namespaces --field-selector metadata.name=grafana
Copy the value in the NAMESPACE column for your Grafana instance. Then run the following port-forward command, replacing [GRAFANA-NAMESPACE] with that value:
kubectl port-forward svc/grafana -n [GRAFANA-NAMESPACE] 8900:80
In the Grafana left-hand menu, navigate to Connections > Data sources, then click + Add new data source.
Select Prometheus from the list of available data sources.
In the Connection section, set the Prometheus server URL to the Prometheus service address. If Grafana and Prometheus are deployed in different namespaces, use the fully qualified service URL. Replace [PROMETHEUS-SERVICE] with the Service name you copied in Verify the Prometheus deployment. Replace [PROMETHEUS-NAMESPACE] with monitoring, the namespace specified in the Helm install command. This is the Prometheus namespace, which can differ from [GRAFANA-NAMESPACE]:
http://[PROMETHEUS-SERVICE].[PROMETHEUS-NAMESPACE].svc.cluster.local:9090
For example, the Service prometheus-kube-prometheus-prometheus in the monitoring namespace has the URL http://prometheus-kube-prometheus-prometheus.monitoring.svc.cluster.local:9090.
Leave the remaining settings at their defaults, including Authentication method set to No Authentication. This tutorial connects to the in-cluster Prometheus Service without authentication or TLS.
Scroll to the bottom of the page and click Save & test. You should see a confirmation that the data source is working.

Configure Prometheus to scrape custom metrics

Prometheus Operator uses ServiceMonitor resources to configure which services to scrape. Create a ServiceMonitor that targets your application.

Expose metrics from your application

Your application must expose a Prometheus-compatible metrics endpoint, typically at /metrics on a designated port. Many frameworks provide this out of the box, including:

For example, a Python application using prometheus_client might expose metrics at port 8000:

from prometheus_client import start_http_server, Counter

REQUEST_COUNT = Counter('app_requests_total', 'Total number of requests')

start_http_server(8000)

Integrate this snippet into your running application. It is not a standalone server script. The metrics server runs in a background thread, so your application must keep running to serve /metrics. Call REQUEST_COUNT.inc() in your application’s request handler once per request you want to count. Creating the counter alone does not increment it.

Create a Service for your application

Create a Kubernetes Service that exposes the metrics port with a named port. Prometheus uses the port name to identify which port to scrape. This example assumes your application is already deployed in the cluster, its Pods have the label app: my-app, and its metrics endpoint listens on port 8000. Adjust spec.selector and targetPort to match your application.

app-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: my-app
  namespace: [APP-NAMESPACE]
  labels:
    app: my-app
spec:
  selector:
    app: my-app
  ports:
    - name: metrics
      port: 8000
      targetPort: 8000

Replace [APP-NAMESPACE] with your application’s namespace. Apply the Service:

kubectl apply -f app-service.yaml

Create a ServiceMonitor

Create a ServiceMonitor resource that tells Prometheus to scrape the Service you just created:

app-servicemonitor.yaml

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: my-app
  namespace: monitoring
  labels:
    release: prometheus
spec:
  namespaceSelector:
    matchNames:
      - [APP-NAMESPACE]
  selector:
    matchLabels:
      app: my-app
  endpoints:
    - port: metrics
      interval: 30s

Replace [APP-NAMESPACE] with your application’s namespace.

The release: prometheus label on the ServiceMonitor must match the Helm release name used when installing kube-prometheus-stack. If you used a different release name, update this label accordingly.

Apply the ServiceMonitor:

kubectl apply -f app-servicemonitor.yaml

Verify Prometheus is scraping your application

To confirm Prometheus is scraping your application, port-forward to the Prometheus Service. Replace [PROMETHEUS-SERVICE] with the name you copied in Verify the Prometheus deployment and [PROMETHEUS-NAMESPACE] with monitoring:

kubectl port-forward svc/[PROMETHEUS-SERVICE] -n [PROMETHEUS-NAMESPACE] 9090:9090

Open http://localhost:9090/targets in your browser. Allow time for Prometheus to discover the ServiceMonitor and complete its first scrape. The configuration above scrapes every 30 seconds. Refresh the page until your application appears in the list of scrape targets with a status of UP.

These custom metrics appear only in your self-hosted Prometheus and Grafana. CoreWeave’s managed observability collects infrastructure metrics and does not surface your application metrics in CoreWeave Grafana.

Query custom metrics in Grafana

With Prometheus configured as a data source in Grafana, you can now query your custom metrics.

In Grafana, navigate to Explore from the left-hand menu.
Select your data source, such as prometheus, from the dropdown at the top of the page.
Select Code to enter a PromQL query using one of your application’s metric names. For example:
app_requests_total
Click Run query. Your custom metric data should appear in the query results. If you see No data, confirm that the target is UP, allow time for a scrape, and run the query again. The counter increases only when your application increments it.

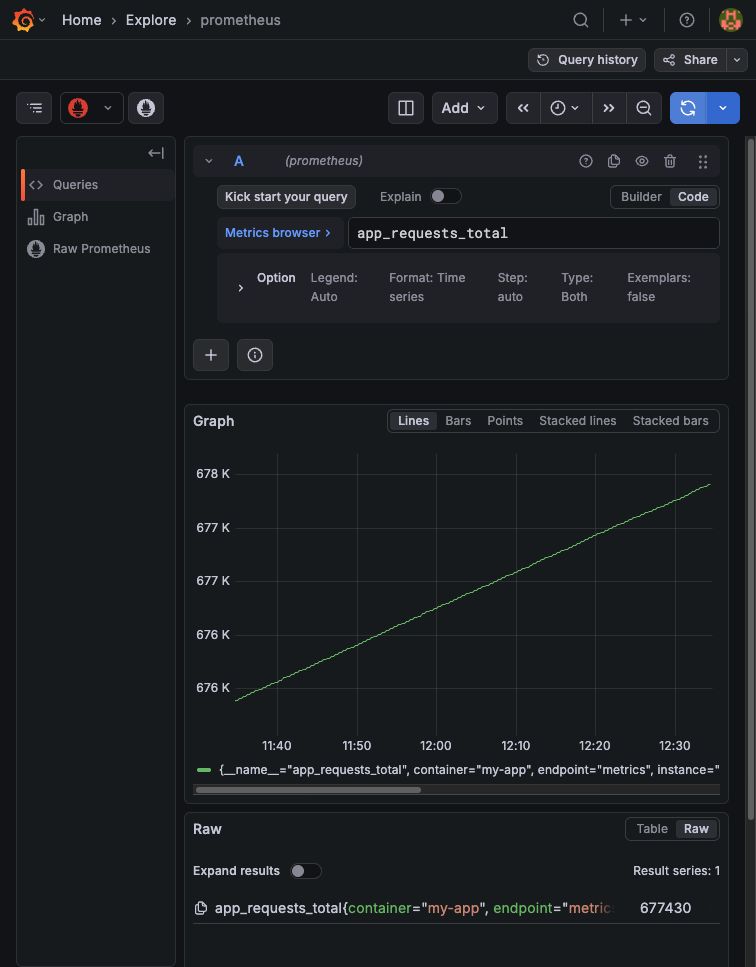

The following image shows app_requests_total in Grafana Explore for a sample application that increments the counter. Your values depend on your application’s activity. Grafana Explore in Code mode showing the app_requests_total query and a rising time series.

Grafana Explore in Code mode showing the app_requests_total query and a rising time series.

You can build dashboards with your custom metrics by navigating to Dashboards > New > New dashboard and adding panels that reference your Prometheus data source.

Learn more

Prometheus documentation on configuring scraping, alerting rules, and PromQL
Prometheus Operator documentation on ServiceMonitor, PodMonitor, and other custom resources
Self-hosted Grafana for setup instructions and configuring CoreWeave data sources
