Cluster Resource Overview - CoreWeave Docs

To view the dashboard, go to the Cluster Resource Overview dashboard.

For instructions about accessing CoreWeave Grafana dashboards, see Access and use CoreWeave Grafana dashboards.

The Cluster Resource Overview dashboard summarizes your cluster resource utilization and workload health. It gives you a high-level view of your Kubernetes cluster and lets you investigate specific components in detail.

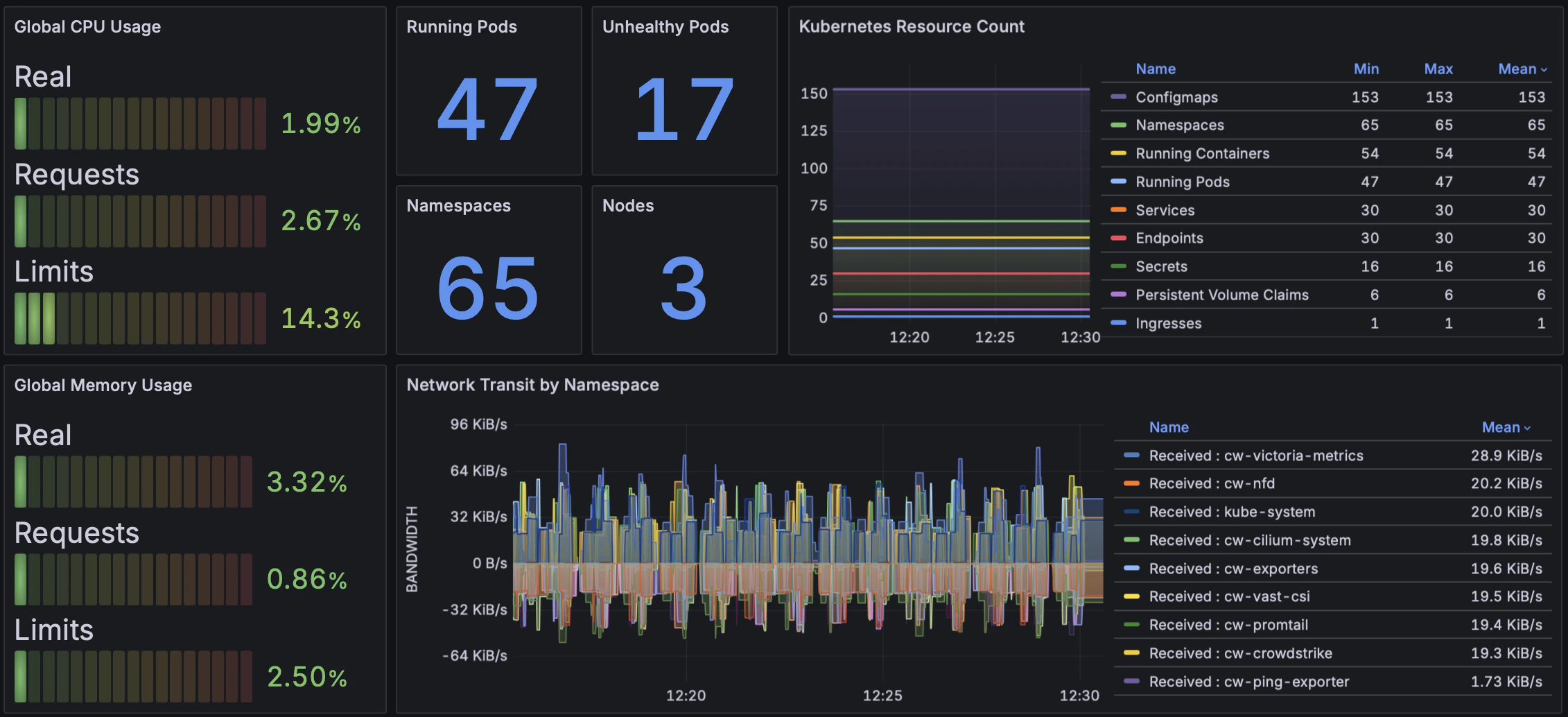

Overview

The Overview section shows cluster-wide CPU usage, memory usage, network transit throughput, and a summary of workload health. Use it to quickly assess the overall state of your cluster.

Panel Title	Description
Global CPU Usage	Displays CPU usage, requests, and limits across the entire cluster.
Global Memory Usage	Displays memory usage, requests, and limits across the entire cluster.
Kubernetes Resource Count	Shows the count of Kubernetes resources such as ConfigMaps, Running Containers, and Namespaces.
Network Transit by Namespace	Displays the network traffic (received and transmitted) broken down by namespace.
Unhealthy Pods by Namespace	Shows the count of unhealthy Pods over time, grouped by namespace.
Pods Phase Count	Shows the number of Pods in different phases (Running, Pending, Failed, Succeeded, and Unknown).

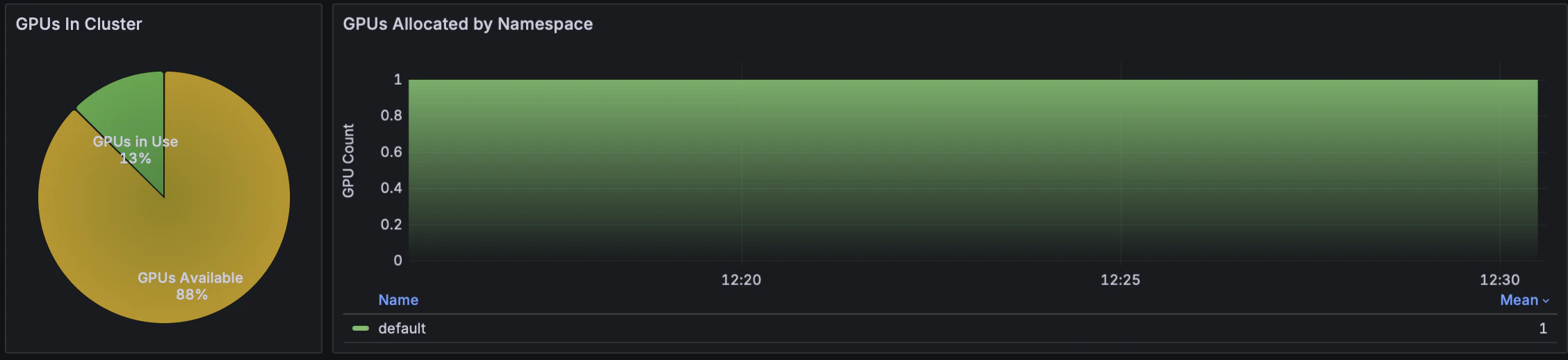

GPU Info

The GPU Info section provides insights into GPU usage, availability, and the status of idle Slurm Nodes.

Panel Title	Description
GPUs In Cluster	Displays the total number of GPUs available in the cluster.
GPUs Allocated by Namespace	Shows how GPUs are distributed and allocated across different namespaces.
GPU Accelerated Pods	Lists all Pods that are currently using GPUs.
Idle Slurm Nodes/Pods	A graph showing the number of idle Slurm Nodes or Pods over time.

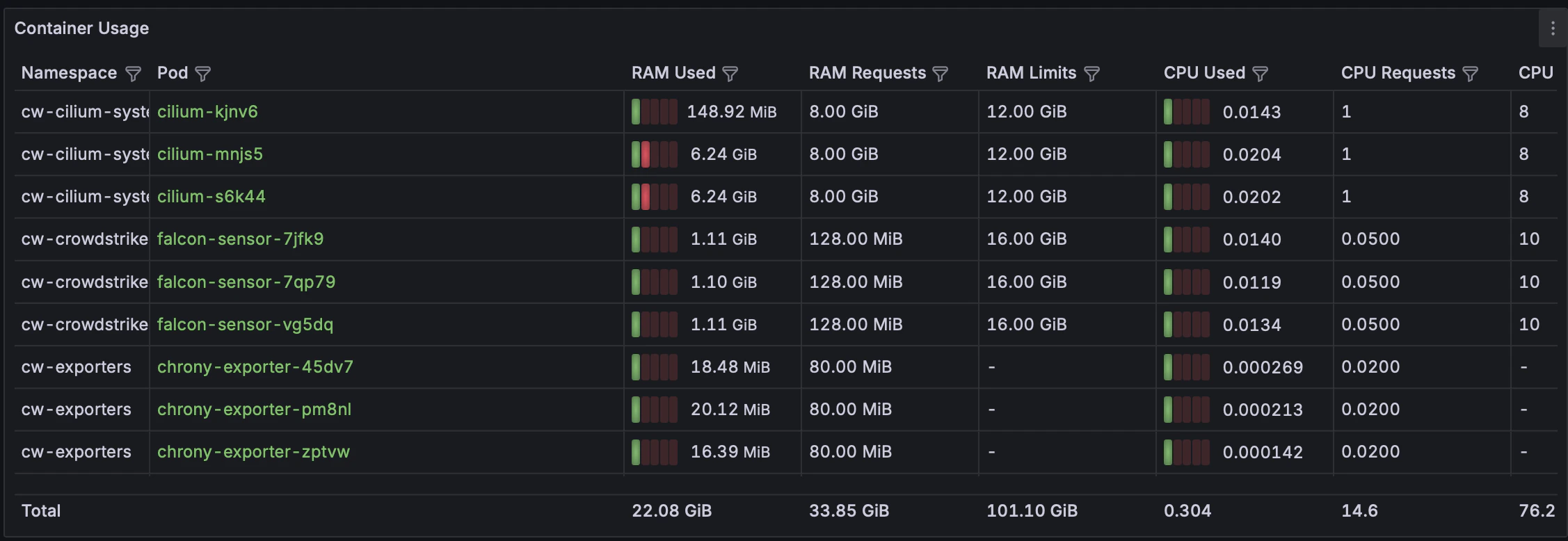

Pod Info

The Pod Info section details CPU and memory limits, requests, and usage for each individual Pod. Use it to understand resource consumption at the Pod level.

Panel Title	Description
Container Usage	Lists Pods with their namespace, RAM usage, RAM requests, RAM limits, and CPU usage.
Pod Readiness	Shows the readiness status of each Pod.

Node Info

The Node Info section displays CPU and memory capacity, requests, and limits for Pods running on each Node. It also shows the percentage of utilization for each Node based on Pod requests.

Panel Title	Description
Node Requests vs Capacity	A table detailing each Node’s Cores Capacity, CPU Requests, CPU Limits, CPU Requests percent, Memory Capacity, Memory Request, Memory Limits, and Memory Requests.

Deployment, StatefulSet, and DaemonSet Info

This section provides basic scheduled and ready replica counts for each workload, including Deployments, StatefulSets, and DaemonSets. Use it to verify that your applications are scaled correctly.

Panel Title	Description
Deployments	Lists deployments with their current and desired replica counts.
StatefulSets	Lists StatefulSets with their current and desired replica counts.
DaemonSets	Lists DaemonSets with the number of scheduled and ready daemon Pods.

Image Info

The Image Info section shows all container images currently in use throughout the cluster. Use it to track image versions and verify compliance.

Panel Title	Description
Images In Use	A table listing image names, the number of containers using the image, and the container tag.
