To view the dashboard, go to the Node Wrangler dashboard.
For instructions about accessing CoreWeave Grafana dashboards, see Access and use CoreWeave Grafana dashboards.
The Node Wrangler dashboard displays aggregated information about the Nodes in your fleet. It provides a summary of Node status, power utilization, and SM utilization over time, as well as detailed information about each Node’s condition and alerts. The dashboard is divided into several panel groups, each providing different information about the Nodes in your fleet. You can filter the data displayed in the dashboard by selecting specific data sources, regions, clusters, or organizations.

​
Example view

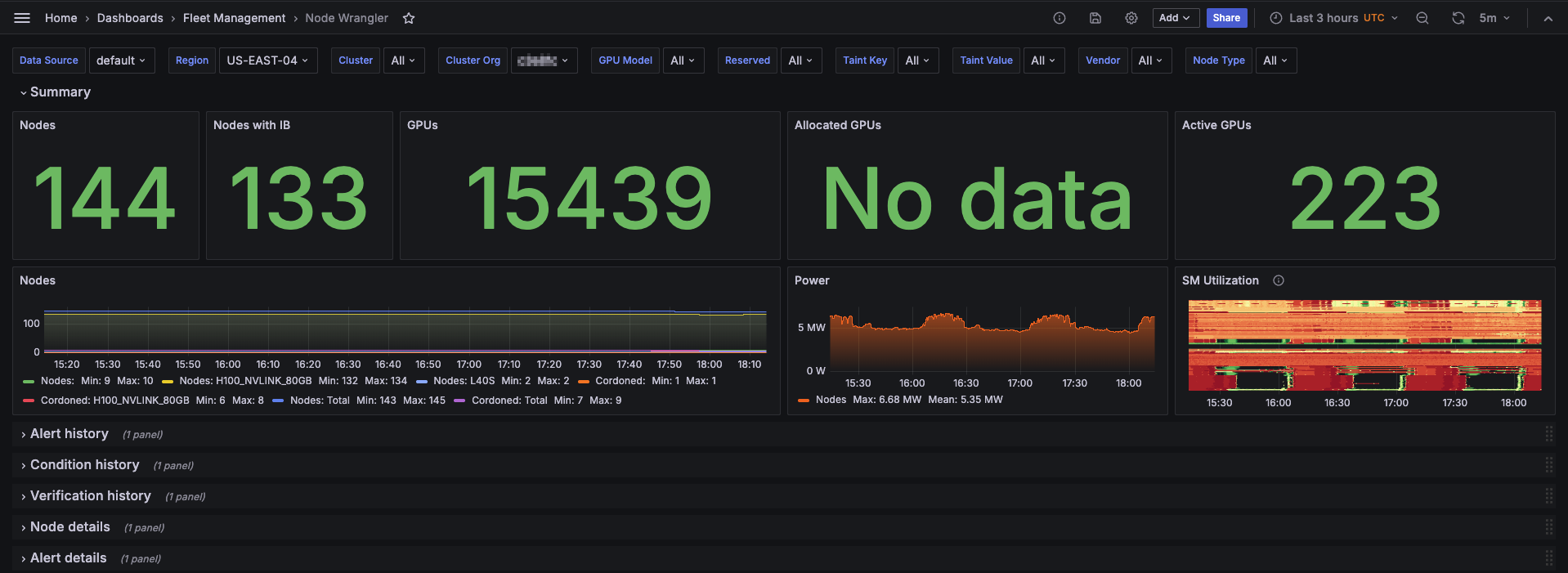

When the dashboard first loads, the Summary panel group is expanded by default. Node Wrangler Summary

​
Panel groups

The Node Wrangler dashboard is divided into panel groups, each providing different information about the Nodes in your fleet. When viewing the dashboard, click these group headings to collapse or expand that section.
SectionWhat you’ll find
SummaryOverview of Nodes and their status, power utilization and SM utilization over time.
Alert HistoryNodes alert status over the selected time range.
Condition HistoryNodes condition status over the selected time range.
Verification HistoryNodes verification status over the selected time range.
Node DetailsDetailed table of Node information, including uptime, InfiniBand status, IP addresses, serial numbers, and current verification messages.
Alert DetailsDetailed table of current alert information, including state, severity, and Node and Pod information.
